The Advantages of Combining Biophysical Sensor Setups with Environmental and Device Data
© Sonika Agarwal
Why One Modality Isn't Enough
In human behavior research and applied usability testing, data collection has for a long time relied on single-modality sensor setups—for example, using only eye tracking, heart rate, or user interaction logs to understand performance, emotion, or workload. Mostly due to the technical complexity of combining several modi, these unimodal approaches offer simplicity and ease of interpretation, but they also often fail to capture the full complexity of human experience. Especially in real-world environments where multiple factors interact simultaneously, primary results of unimodal analysis can be misleading.
Abstract
The Advantages of Combining Biophysical Sensor Setups with Environmental and Device Data
In recent years, multimodal analysis has emerged as a powerful methodology for understanding human behavior and performance in real-world environments. By integrating biophysical sensor data (e.g., EEG, ECG, GSR, eye tracking) with environmental factors (e.g., ambient temperature, noise, lighting) and device interaction data (e.g., touchscreen inputs, mouse movements, system logs), researchers and practitioners can capture a comprehensive, context-aware view of user states and behaviors. This paper synthesizes current scientific findings on multimodal analytics and highlights the advantages of using this integrated approach. Key benefits include improved data validity, contextual accuracy, and predictive power, especially in fields such as human factors engineering, usability testing, neuroergonomics, and cognitive workload assessment. Referenced studies from fields like affective computing (Picard, 1997), psychophysiology (Cacioppo et al., 2007), and human-computer interaction (D’Mello & Kory, 2015) provide a strong empirical foundation for adopting multimodal systems in both academic and applied settings.
Introduction
Beyond the Limits of Singularity in Behavior Analysis
Understanding how humans behave, decide, and perform in dynamic environments requires more than just isolated signals. Traditional observational or single-sensor studies can be limited in scope, lacking either physiological depth or contextual relevance. Multimodal analysis addresses this issue by fusing data from diverse sources, allowing for more robust, ecologically valid insights into human states and behavior.
Capturing a situation holistically
Core Components of Multimodal Systems
A multimodal system integrates multiple data streams—such as physiological, behavioral, and environmental inputs—into a unified framework. Its core components ensure precise synchronization, data integrity, and interoperability across sensors and software. These elements form the foundation for accurate, high-resolution behavioral insights.
Bio-Physical Sensor Setups for human observation
- Electroencephalography (EEG) – Measures neural activity for assessing cognitive load and attention.
- Electrocardiography (ECG) – Provides heart rate variability for stress and arousal monitoring.
- Galvanic Skin Response (GSR) – Indicates emotional arousal and sympathetic nervous system activity.
- Eye Tracking – Reveals visual attention, cognitive effort, and fatigue.
- Motion Tracking- Digitalises human posture and movement, as much calculating stress and fatigue for muscles and the skeleton.
Environmental Sensors
Light, noise, temperature, air quality, and spatial positioning (GPS, Indoor Position tracking, IMUs) help define external situational factors influencing user performance.
Device Interaction Logging
Tracks how users interact with software and hardware, revealing patterns in cognitive workload, frustration, and task performance.
Synchronization Software
A less visible but particularly critical component is the software backbone that enables simultaneous triggering, recording, importing, and synchronization of diverse data streams. Without it, the integrity of multimodal analysis collapses. Software must accommodate varying sampling rates, latencies, processing performance, and sensor architectures—while offering time-accurate alignment for downstream analysis.
Prophea.X, with its modular, sensor-agnostic architecture, addresses many of these challenges by offering precise temporal alignment, real-time data fusion, and scalable integration—removing the traditional friction of multimodal research workflows.
Advantages of Multimodal Integration
Contextual Awareness
Combining bio-signals with environmental data reveals how context modulates physiological states. For example, stress levels (via ECG) can be better interpreted when correlated with environmental noise levels or ambient temperature.
Improved Data Reliability
Multimodal data enables cross-validation: inconsistencies in one signal can be interpreted through another, reducing false positives and enhancing signal interpretation.
Enhanced Predictive Modeling
Integrated datasets allow for the application of machine learning techniques that can more accurately classify cognitive or emotional states
Ecological Validity
Multimodal setups are particularly powerful in naturalistic field studies, where multiple uncontrolled variables exist. Combining data streams allows researchers to retain scientific rigor outside the lab.
Resources
Jaimes, A., & Sebe, N. (2007). “Multimodal human–computer interaction: A survey.” Computer Vision and Image Understanding, 108(1–2), 116–13; D’Mello, S. K., & Kory, J. (2015). “A review and meta-analysis of multimodal affect detection systems.” ACM Computing Surveys (CSUR), 47(3), 1–36.Cowie, R., Douglas-Cowie, E., et al. (2001). “Emotion recognition in human-computer interaction.” Signal Processing Magazine, IEEE, 18(1), 32–80; Oviatt, S. (1999). “Ten myths of multimodal interaction.” Communications of the ACM, 42(11), 74–81; Lalanne, D., & Bächler, M. (2007). “A Comparative Study of Multimodal Interfaces for Real-Life Settings.” Proceedings of ICMI ’07 (International Conference on Multimodal Interfaces).
Single-Modality Setups
Strengths and Limitations
While single-modality sensor setups remain popular for their simplicity and focus, they often fall short in capturing the nuanced, context-driven nature of human behavior.
Pros:
- Lower complexity: Fewer devices mean easier setup, calibration, and data processing.
- Focused insights: Ideal when targeting a very specific behavioral or physiological marker (e.g., gaze distribution in a visual search task).
- Cost-effective: Fewer sensors reduce equipment and personnel costs.
- Faster analysis pipelines: Less data to clean, synchronize, and interpret.
Multimodal Setups
Integrated Perspectives
Multimodal systems integrate two or more data sources, typically combining biophysical signals (like ECG or EEG) with contextual inputs (like ambient noise, GPS, or user-device interactions).
Pros:
- Holistic insights: Captures a more accurate, layered picture of behavior and internal states.
- Context-sensitive interpretation: Allows physiological signals to be interpreted within the environmental and task context.
- Higher reliability: Enables signal validation across modalities, reducing false positives and increasing confidence in conclusions.
- Supports advanced analytics: Enables the use of machine learning and pattern recognition on richer, multidimensional data.
Cons:
- Narrow perspective: Captures only one dimension of user state, which may be misleading without context.
- Reduced robustness: Susceptible to signal noise, artifacts, or misinterpretation without cross-validation.
- Limited ecological validity: Cannot account for contextual or environmental variables that influence the data.
For instance, an elevated heart rate may suggest stress—but without complementary data from GSR, EEG, or environmental noise levels, it’s impossible to know whether the cause is mental workload, temperature, or a sudden loud sound.
Cons:
- Technical complexity: Requires time-synchronized recording systems, calibration, and alignment across sensor types.
- Increased data volume: Demands more sophisticated processing pipelines and data storage.
- Interdisciplinary expertise needed: Interpretation often requires knowledge in neuroscience, psychology, signal processing, and data science.
- Higher cost and resource needs: Equipment, data handling, and personnel investment increase substantially.
-
View Resources
Jaimes, A., & Sebe, N. (2007).Multimodal human–computer interaction: A survey.
Computer Vision and Image Understanding, 108(1–2), 116–134.
This comprehensive survey highlights the major advantages of multimodal systems, such as improved recognition accuracy, robustness, and richer contextual understanding by combining complementary data streams. It also discusses the increased computational complexity, system design challenges, and the difficulty in integrating heterogeneous data sources as notable drawbacks.
Oviatt, S. (1999).Ten myths of multimodal interaction.
Communications of the ACM, 42(11), 74–81.
Oviatt explores common misconceptions about multimodal systems, emphasizing their potential to create more natural and flexible user interfaces. However, she also points out challenges including ambiguity resolution when modalities conflict, the complexity of designing multimodal fusion algorithms, and the need for real-time processing capabilities.
D’Mello, S. K., & Kory, J. (2015).A review and meta-analysis of multimodal affect detection systems.
ACM Computing Surveys (CSUR), 47(3), 1–36.
This meta-analysis demonstrates the performance improvements achieved by integrating multiple affective signals (e.g., facial expressions, speech, physiological data). It also outlines challenges such as sensor noise, variability in data quality, and difficulties in synchronizing multimodal inputs effectively.
Zeng, Z., Pantic, M., Roisman, G. I., & Huang, T. S. (2009).A survey of affect recognition methods: Audio, visual, and spontaneous expressions.
Pattern Recognition, 41(1), 90–105.
The paper reviews audio-visual affect recognition systems, emphasizing the benefits of multimodal fusion in enhancing recognition accuracy and robustness. It highlights synchronization issues, computational demands, and the need for sophisticated modeling techniques as major limitations.
Lalanne, D., & Bächler, M. (2007).
A Comparative Study of Multimodal Interfaces for Real-Life Settings.
Proceedings of ICMI ’07 (International Conference on Multimodal Interfaces).
This study focuses on the practical advantages of multimodal systems, such as ecological validity and improved user experience in real-world contexts. It also draws attention to the increased cost of hardware and software infrastructure and the engineering effort required for deployment.
Single Modality Approach VS Multimodal Study in Behavior Research
A Brief Comparison
While simple setups may suffice in highly controlled environments or tightly scoped studies, real-world applications increasingly demand context-aware, integrative insights. In such cases, multimodal analysis is not just advantageous—it’s essential.
For a selection of studies using one or multiple modalities, please visit our Publication Library
Multi Modal Data Acquisition
Applications Across Domains
Today the concept of Multimodal behavior analysis systems is transforming a wide range of fields by delivering deeper, context-rich insights into human performance, emotion, and interaction.

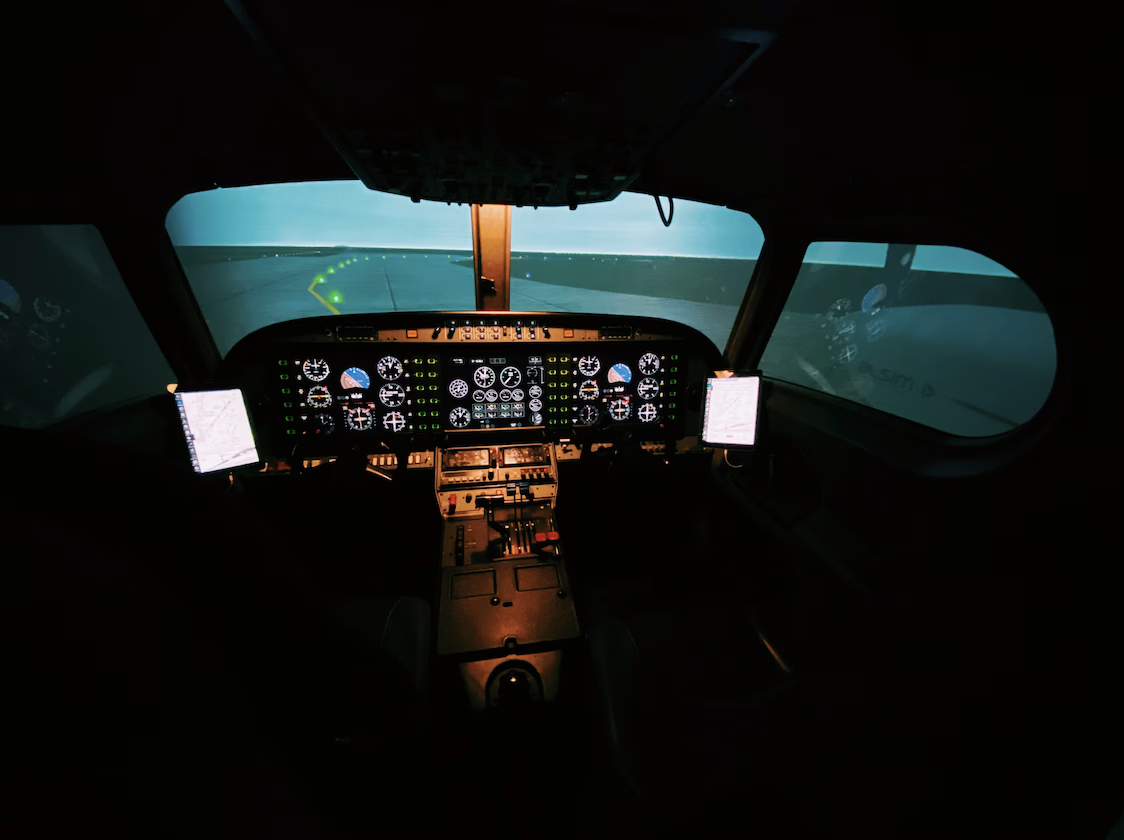

Defense researchers evaluate pilot trust in UAV control systems using eye tracking and GSR during human-drone handoff procedures, identifying conditions that erode or enhance mission trust.
References:
Computers in Biology and Medicine, 42(12), 1186–1195.Kim, J., & André, E. (2008).Emotion recognition based on physiological changes in music listening.
IEEE Transactions on Pattern Analysis and Machine Intelligence, 30(12), 2067–2083.
Cao, Y., Ajanki, A., & Valtonen, T. (2016).Multimodal interaction analysis of social signals in group communication.
Behavior Research Methods, 48(3), 1044–1061.
Lotte, F., et al. (2007).A review of classification algorithms for EEG-based brain–computer interfaces.
Journal of Neural Engineering, 4(2), R1–R13.
Nijboer, F., et al. (2008).An auditory brain–computer interface (BCI).
Clinical Neurophysiology, 119(5), 1070–1081.
Schultheis, T., & Jameson, A. (2004).
Assessing cognitive workload using physiological sensors in operational environments.
Proceedings of the Human Factors and Ergonomics Society Annual Meeting.
Wilson, G. F. (2002).An analysis of mental workload in pilots using multiple psychophysiological measures.
The International Journal of Aviation Psychology, 12(1), 3–18.
van Erp, J. B. F., et al. (2015).Tactile navigation displays for orientation awareness and wayfinding in defense training.
IEEE Transactions on Haptics, 8(4), 431–438.
Hancock, P. A., et al. (2011).A meta-analysis of factors affecting trust in human-robot interaction
Human Factors: The Journal of the Human Factors and Ergonomics Society
© Olivier Amyot
Research methodologies
Challenges and Considerations
While the latest multimodal systems are unlocking incredibly powerful new insights, their development also presents exciting technical challenges that drive innovation in data integration and analysis.
Data synchronization remains a key technical challenge, as achieving real-time alignment across diverse data streams demands precise timing and robust system architecture.
Interpreting multimodal data is inherently complex, requiring interdisciplinary expertise across signal processing, psychology, and domain-specific knowledge to extract meaningful insights.
Ethical and privacy considerations are especially critical when collecting sensitive biometric and environmental data in real-world contexts, necessitating strict data governance and user consent protocols.
Resources
Zeng, Z., Pantic, M., Roisman, G. I., & Huang, T. S. (2009).A survey of affect recognition methods: Audio, visual, and spontaneous expressions.
Pattern Recognition, 41(1), 90–105.
This survey outlines key technical obstacles in multimodal systems, especially in synchronizing diverse inputs. It highlights data alignment difficulties, handling noise and missing values, and developing real-time fusion models that scale across contexts.
D’Mello, S. K., & Kory, J. (2015).A review and meta-analysis of multimodal affect detection systems.
ACM Computing Surveys (CSUR), 47(3), 1–36.
A thorough meta-analysis that points to the complexity of implementing multimodal pipelines. It identifies challenges including sensor instability, data fusion latency, modality imbalance, and the high resource cost of collecting and labeling synchronized datasets.
Oviatt, S. (1999).Ten myths of multimodal interaction.
Communications of the ACM, 42(11), 74–81.
Oviatt breaks down misconceptions around multimodal systems and presents practical design concerns. These include ambiguity resolution when modalities disagree, increased interface complexity, and the misconception that more data sources always improve performance.
Atrey, P. K., Hossain, M. A., El Saddik, A., & Kankanhalli, M. S. (2010).Multimodal fusion for multimedia analysis: a survey.
Multimedia Systems, 16, 345–379.
This paper surveys various fusion strategies (early, late, hybrid), emphasizing the engineering and algorithmic hurdles each presents—such as mismatched sampling rates, computational demands, modality weighting, and redundancy filtering.
Bruno Dumas, Denis Lalanne, and Sharon Oviatt (2009)
Multimodal Interfaces: A Survey of Principles, Models and Frameworks
This study emphasizes challenges in deploying multimodal systems in real-world environments. It discusses the cost of integrating hardware and software, difficulty in managing sensor calibration, and user-centered issues like fatigue, cognitive load, and system trustworthiness.
Behavior Research
Software Solution
Prophea.X was designed by Ergoneers pioneering engineering team to effectively bridge the gap between potential and practicality in multimodal analysis. Its modular, sensor-agnostic design ensures compatibility with most leading biophysical sensor setups used in behavioral research—including EEG, ECG, GSR, eye tracking, and motion capture systems—allowing flexible integration without vendor lock-in. Prophea.X also supports synchronized logging of simulator outputs, environmental metrics, and device interaction data, making it ideal for applied fields such as automotive usability, neuroergonomics, and HCI studies. Real-time alignment, unified triggering, and intelligent import tools dramatically reduce the technical burden of working with diverse data streams. Built-in support for signal inspection, annotation, and event-based segmentation enables interdisciplinary collaboration across behavioral science, psychology, and engineering. With a streamlined architecture and scalable deployment options, Prophea.X delivers cost-efficient multimodal research infrastructure—all while adhering to GDPR-compliant data security protocols. In short, Prophea.X removes the barriers of fragmentation, complexity, and cost, empowering researchers to generate deeper insights with less overhead.
Conclusion
The integration of biophysical, environmental, and device interaction data through multimodal analysis enables a paradigm shift in how human behavior is understood and evaluated. From lab-based experiments to real-world deployments, multimodal systems offer greater depth, precision, and contextual relevance than unimodal approaches. As sensor technologies advance and data fusion techniques mature, multimodal analysis will continue to reshape research and practice in multiple fields.
Additional References
Literature Suggestions
- Picard, R. W. (1997). Affective Computing. MIT Press.
- Key Cacioppo, J. T., Tassinary, L. G., & Berntson, G. G. (Eds.). (2007). Handbook of Psychophysiology (3rd ed.). Cambridge University Press.
- D’Mello, S. K., & Kory, J. (2015). A Review and Meta-Analysis of Multimodal Affect Detection Systems. ACM Computing Surveys, 47(3), 43.
- Fairclough, S. H. (2009). Fundamentals of physiological computing. Interacting with Computers, 21(1), 133–145.
- Hogervorst, M. A., Brouwer, A.-M., & van Erp, J. B. (2014). Combining and comparing EEG, peripheral physiology and eye-related measures for the assessment of mental workload. Frontiers in Neuroscience, 8, 322.
